BBV201
BBV201 < Butterfly valve < Products < Home

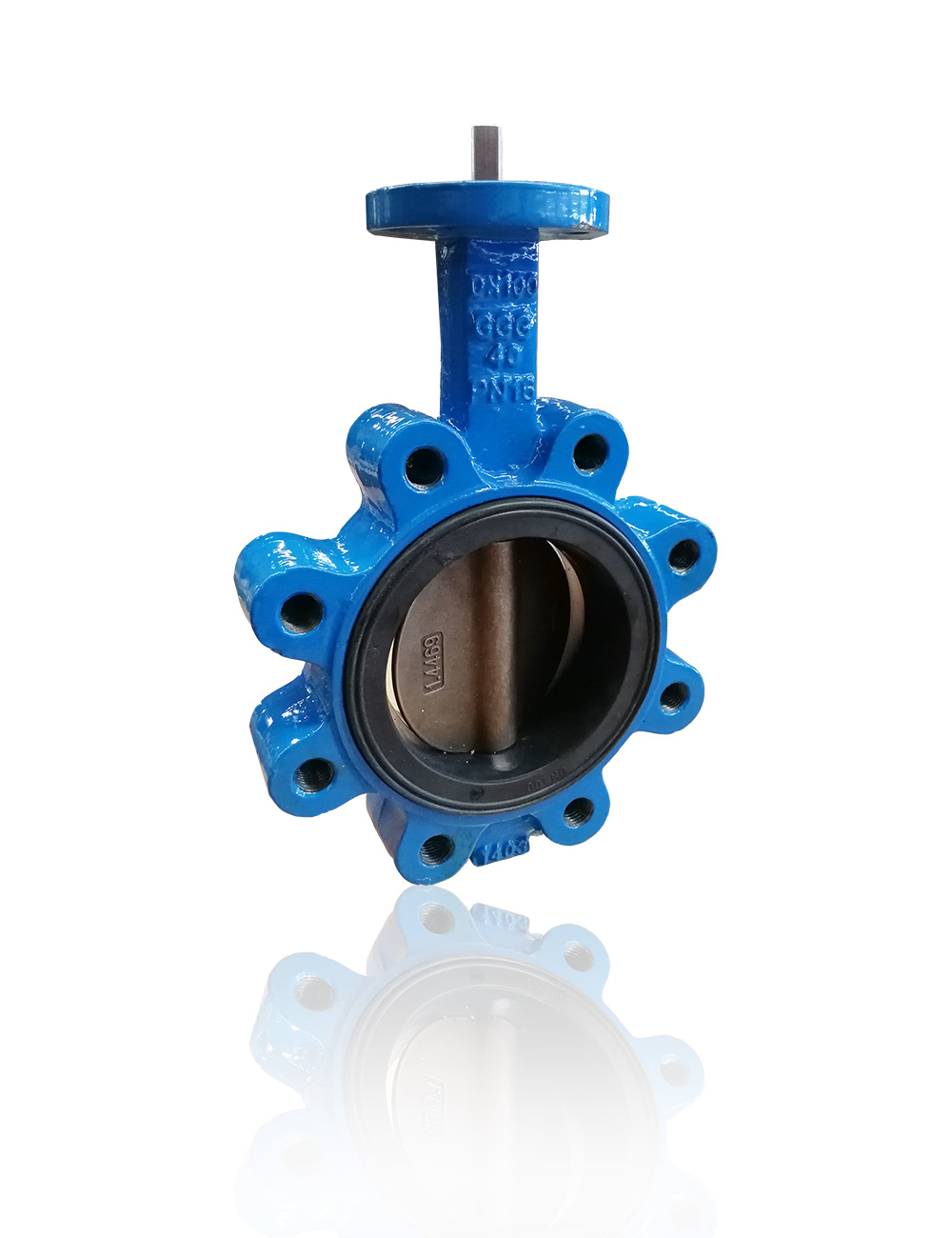

BBV201
Lug soft backup resilient seat butterfly valve

    Design standard:

  • Size range: 1.5" - 24" (40mm - 600mm)
  • Body style: lug type
  • Seat: hard backup seat
  • Valve design:API609, BS EN593
  • Face to face: ISO 5752-20
  • End connection: DIN PN6/10/16, ANSI B16.5 CL150
  • Top flange: ISO5211
  • Pressure ratings: Bidirectional bubble-tight shutoff: 16bar
  • Body (CWP): 24 Bar
  • Material:

  • Body: Ductile iron, WCB, stainless steel
  • Disc: Stainless steel, super duplex SS ,halar coated etc
  • Shaft: SS420,stainless steel, super duplex SS etc
  • Seat: BUNA-N, EPDM, silicon, VITON, polyurethane etc
  • Coating: epoxy coating, nylon, halar etc
  • Operator: handlever, gearbox wheel, any other actuator.
  • Others:

  • Applications: Sanitary service, mildly corrosive, toxic media, irrigation, waste water , sea water etc
