BBV401

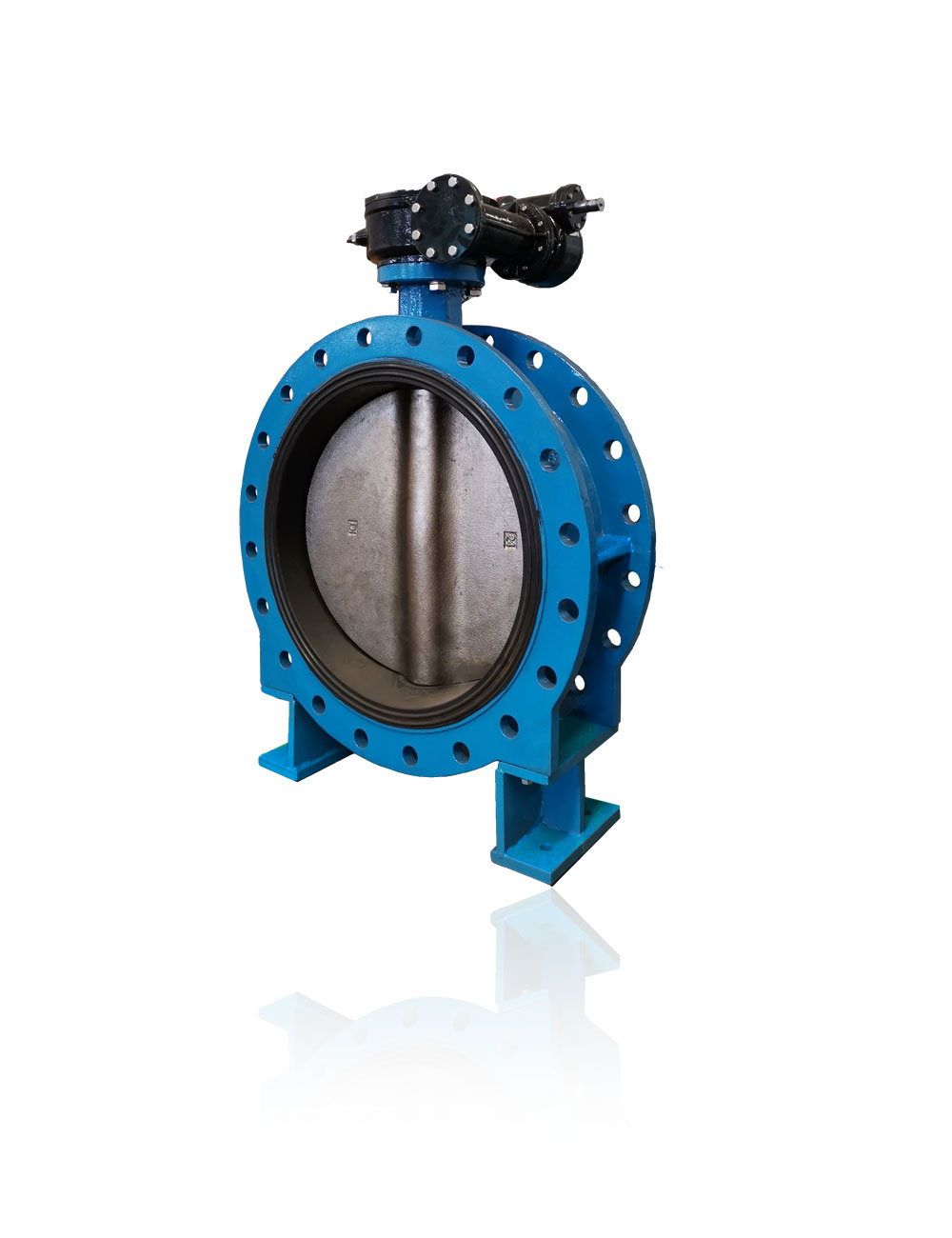

Double flanged vulcanized resilient seat butterfly valve
- Size range: 1.5" - 80" (40mm - 2000mm)
- Body style: double flanged type
- Seat: bonded and vulcanized seat
- Valve design:API609, BS EN593
- Face to face: ISO 5752-13
- End connection: DIN PN6/10/16, ANSI B16.5 CL150
- Top flange: ISO5211
- Pressure ratings: Bidirectional bubble-tight shutoff: 16bar
- Body (CWP): 24 Bar
- Body: Ductile iron, WCB, stainless steel
- Disc: Stainless steel, super duplex SS ,halar coated etc
- Shaft: SS420,stainless steel, super duplex SS etc
- Seat: BUNA-N, EPDM, silicon, VITON, polyurethane etc
- Coating: epoxy coating, nylon, halar etc
- Operator: handlever, gearbox wheel, any other actuator.
- Applications: Sanitary service, mildly corrosive, toxic media, irrigation, waste water , sea water etc

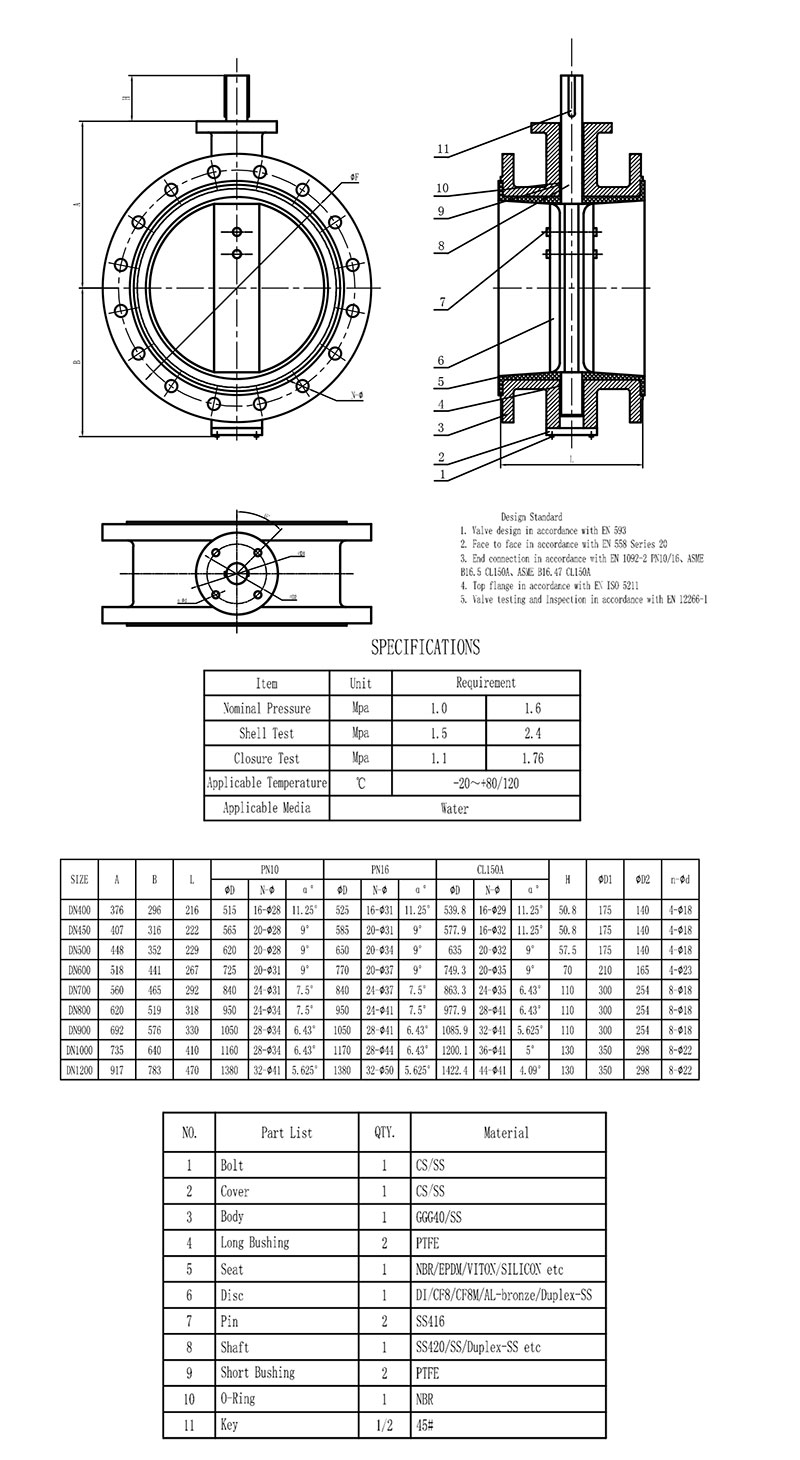

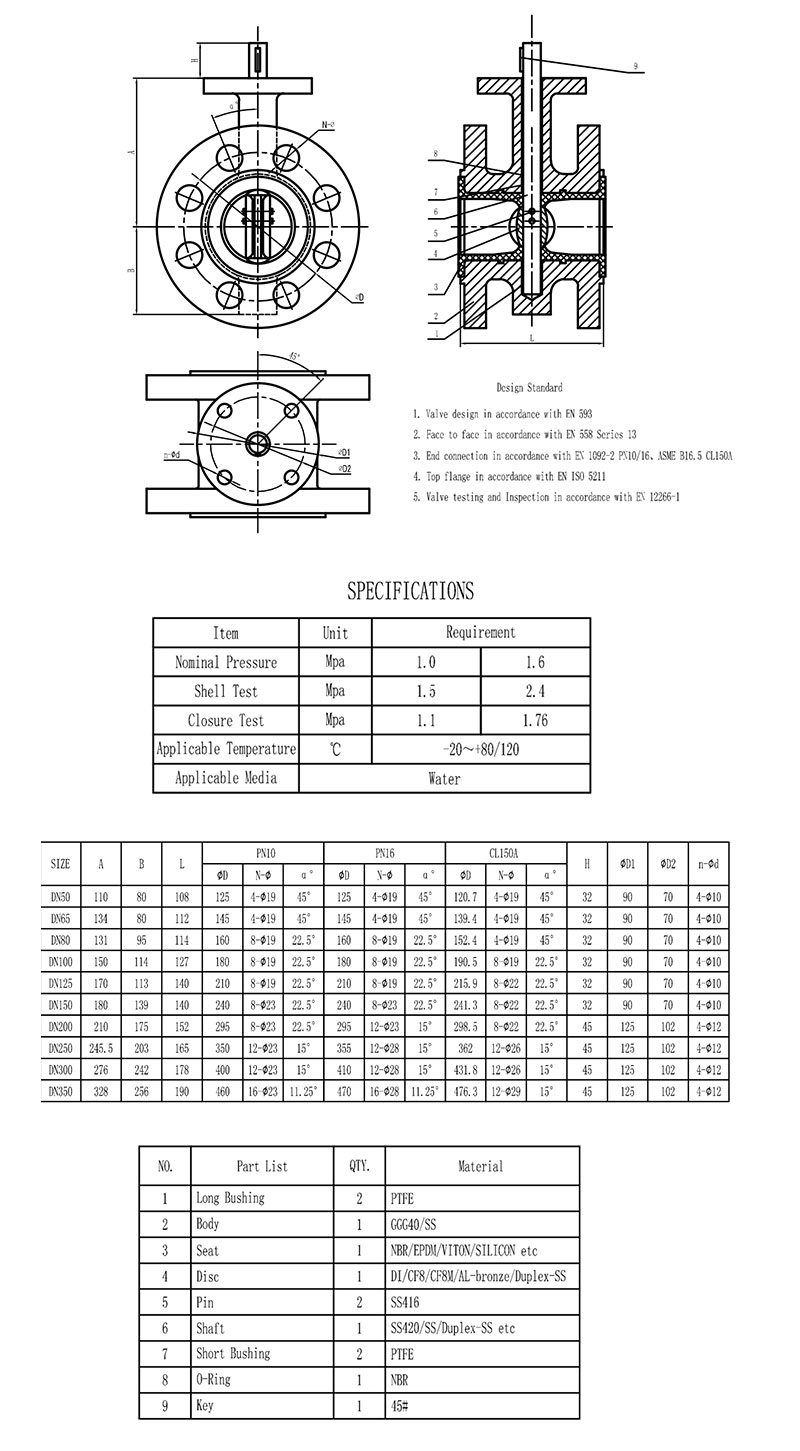

Design standard:
Material:
Others:
