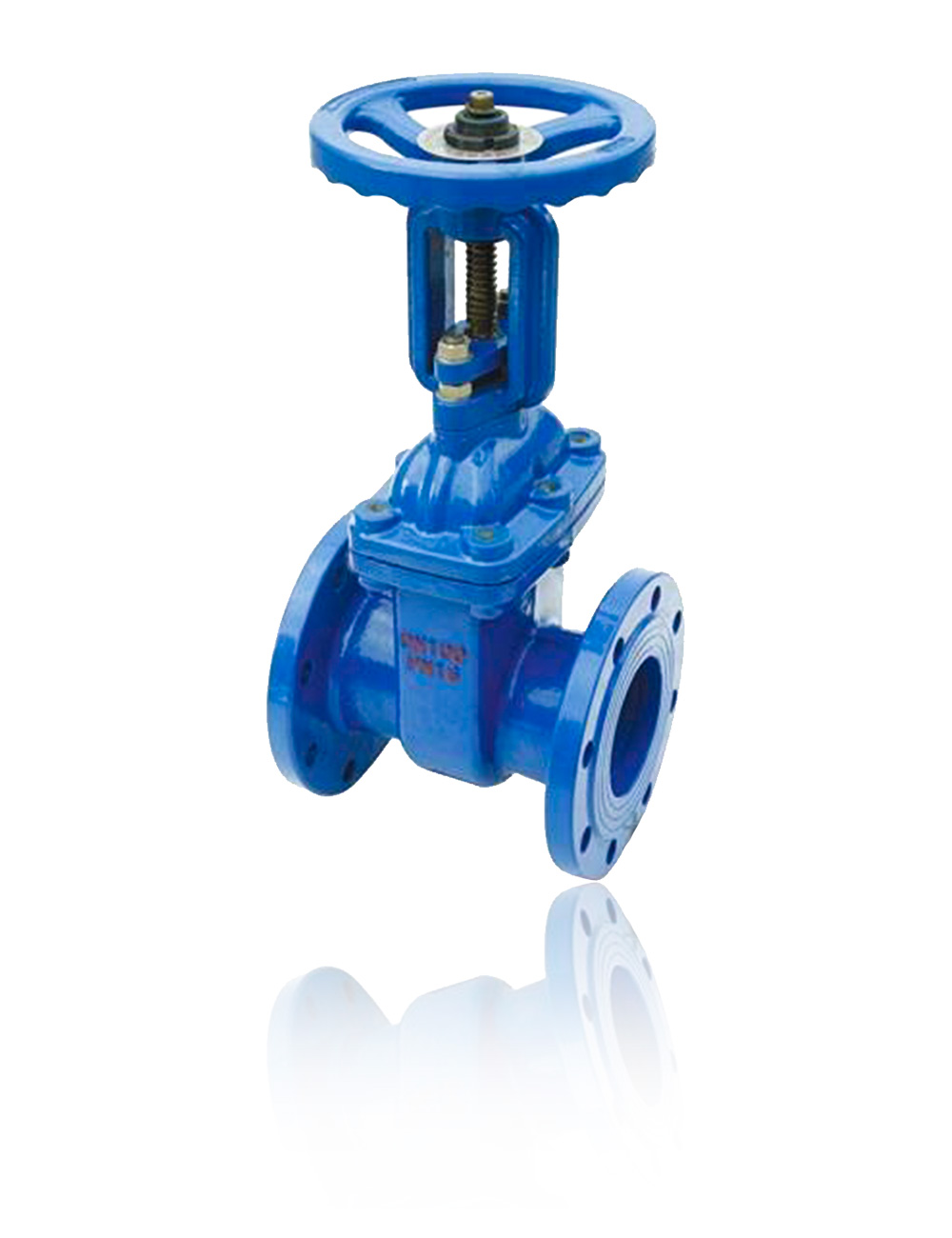

BGR102
Rising shaft resilient seat gate valve
- Sizerange: 1.5" - 24" (40mm - 600mm)
- Body style: double flanged
- Seat: resilient seat
- Valve design: BS EN1171, API604,AWWA C509
- Face to face: DIN F4/F5, BS5163, ANSI B16.10
- End connection: DIN PN6/10/16, ANSI B16.1 CL150
- Pressure ratings: Bidirectional bubble-tight shutoff: 16bar
- Body (CWP): 24 Bar
- Body: Ductile Iron
- Disc: ductile iron, super duplex SS ,enwrapped with BUNA-N, EPDM, VITON, polyurethane etc halar coated etc
- Shaft: SS420,stainless steel, super duplex SS etc
- Seat: Bonze, stainless steel etc
- Coating: epoxy coating, nylon, halar etc
- Operator: wheel, gearbox wheel, any other actuator.
- Applications: Sanitary service, mildly corrosive, toxic media, irrigation, waste water , sea water etc

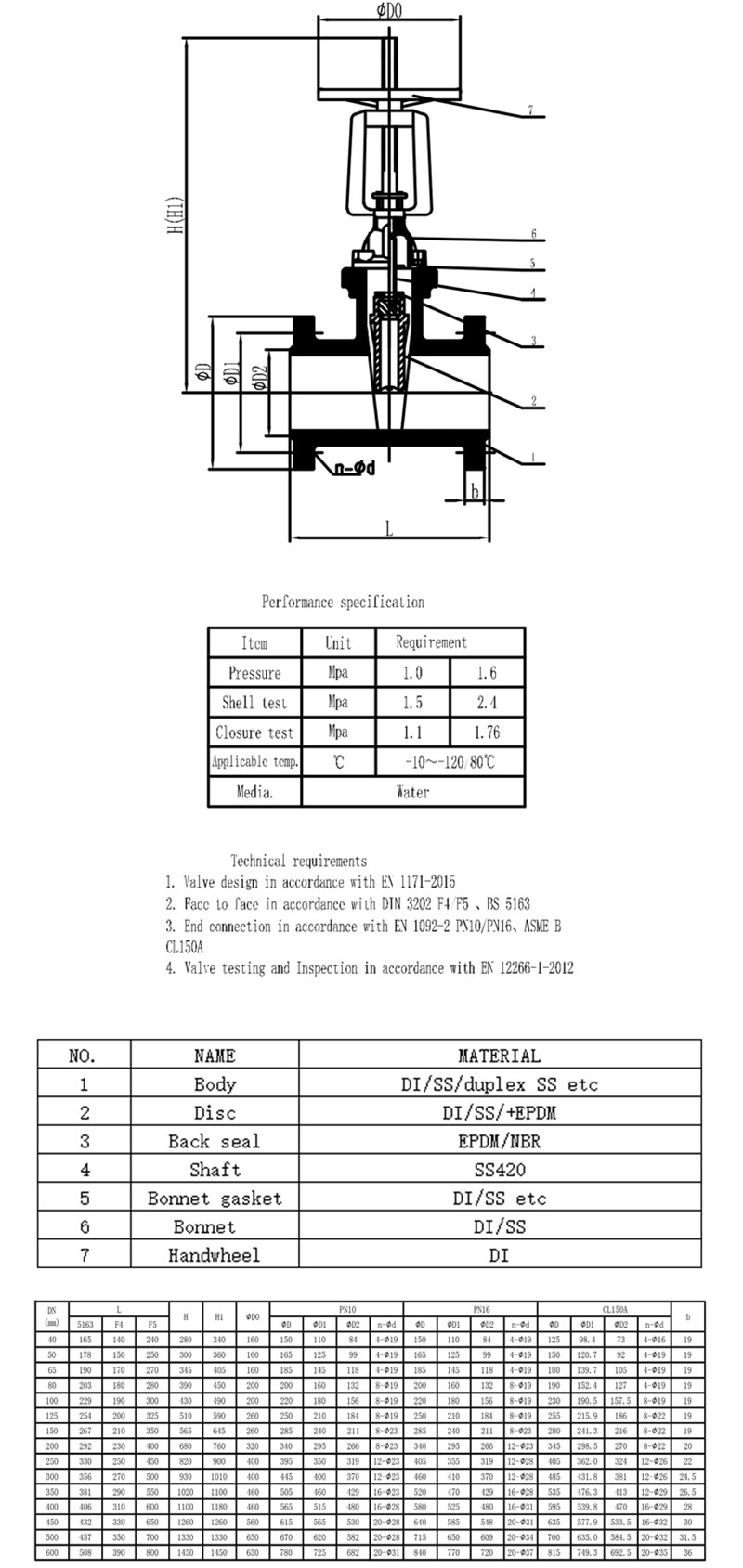

Design standard:
Material:
Others:
