Design standard:

Material:

·         Body: Ductile iron, WCB, stainless steel

·         Disc: Stainless steel, super duplex SS ,halar coated etc

·         Shaft: SS420,stainless steel, super duplex SS etc

·         Seat: BUNA-N, EPDM, silicon, VITON, polyurethane etc

·         Coating: epoxy coating, nylon, halar etc

·         Operator: handlever, gearbox wheel, any other actuator.

Others:

·         Applications: Sanitary service, mildly corrosive, toxic media, irrigation, waste water , sea water etc

·         Size range: 1.5" - 24" (40mm - 600mm)

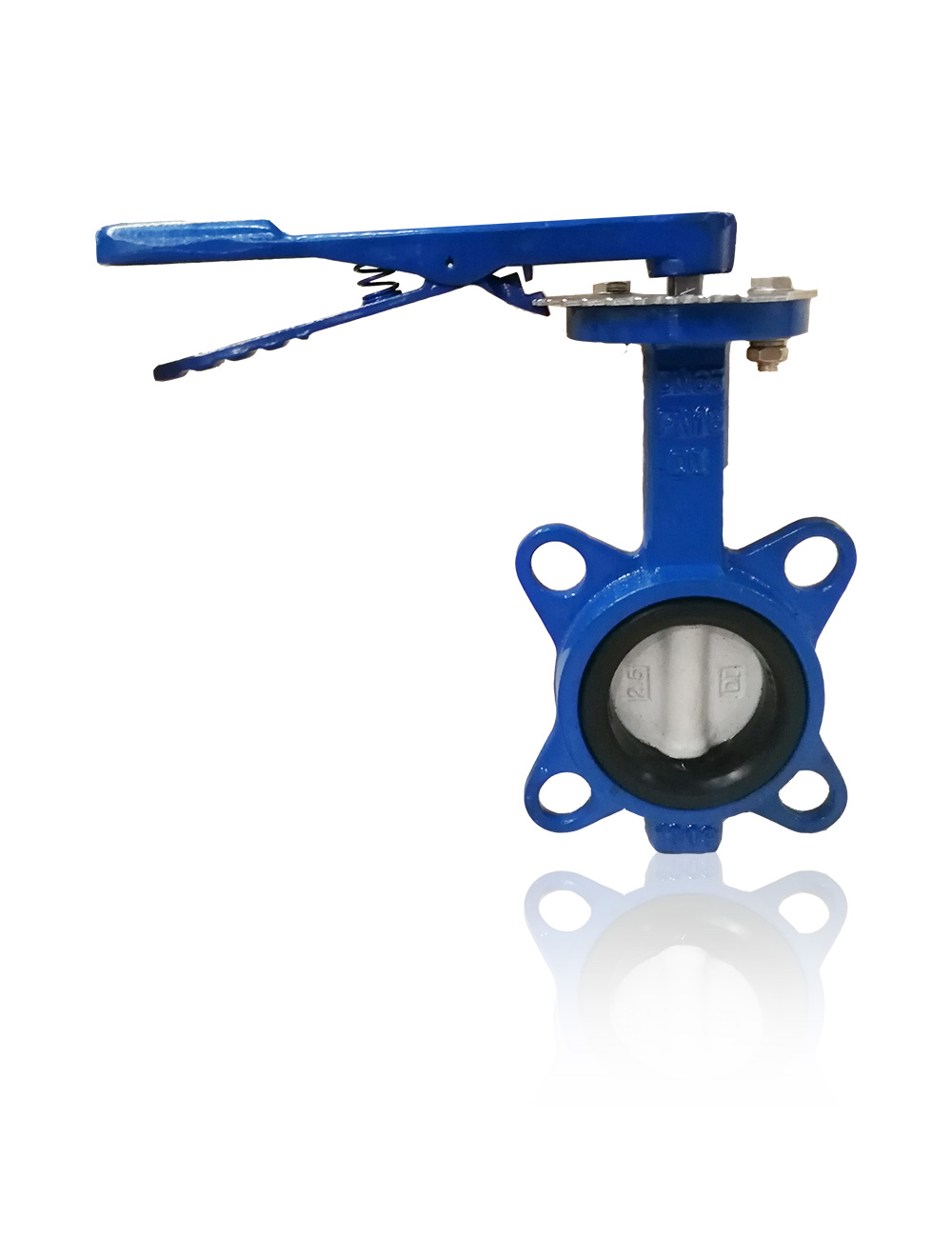

·         Body style: Wafer

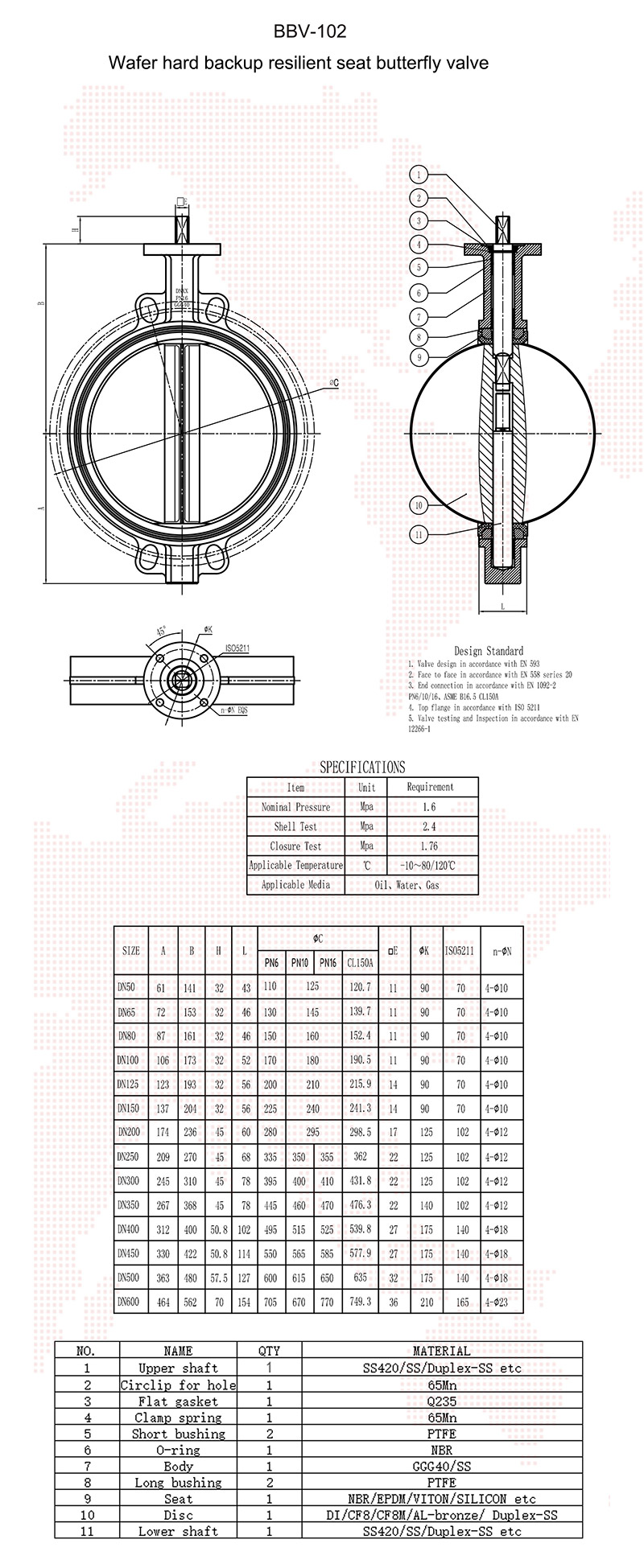

·         Seat: hard backup seat

·         Valve design:API609, BS EN593

·         Face to face: ISO 5752-20

·         End connection: DIN PN6/10/16, ANSI B16.5 CL150

·         Top flange: ISO5211

·         Pressure ratings: Bidirectional bubble-tight shutoff: 16bar

·         Body (CWP): 24 Bar
