BCV201
Wafer double door resilient seat check valve-full rubber lined
- Size range: 1.5" - 24" (40mm - 600mm)
- Body style: Wafer
- Seat: resilient seat
- Valve design: BS EN12334,API6D
- Face to face:ISO5752 series 16,ANSIB16.10
- End connection: DIN PN6/10/16, ANSI B16.1 CL150
- Pressure ratings: Bidirectional bubble-tight shutoff: 16bar
- Body (CWP): 24 Bar
- Body: Ductile iron, WCB, stainless steel full enwrapped with BUNA-N, EPDM, VITON, polyurethane etc
- Disc: WCB, ductile iron, bronze, Stainless steel, super duplex SS
- Shaft: SS420,stainless steel, super duplex SS etc
- Seat: BUNA-N, EPDM, VITON, polyurethane etc
- Coating: epoxy coating, nylon, halar etc
- Applications: Sanitary service, mildly corrosive, toxic media, irrigation, waste water , sea water etc

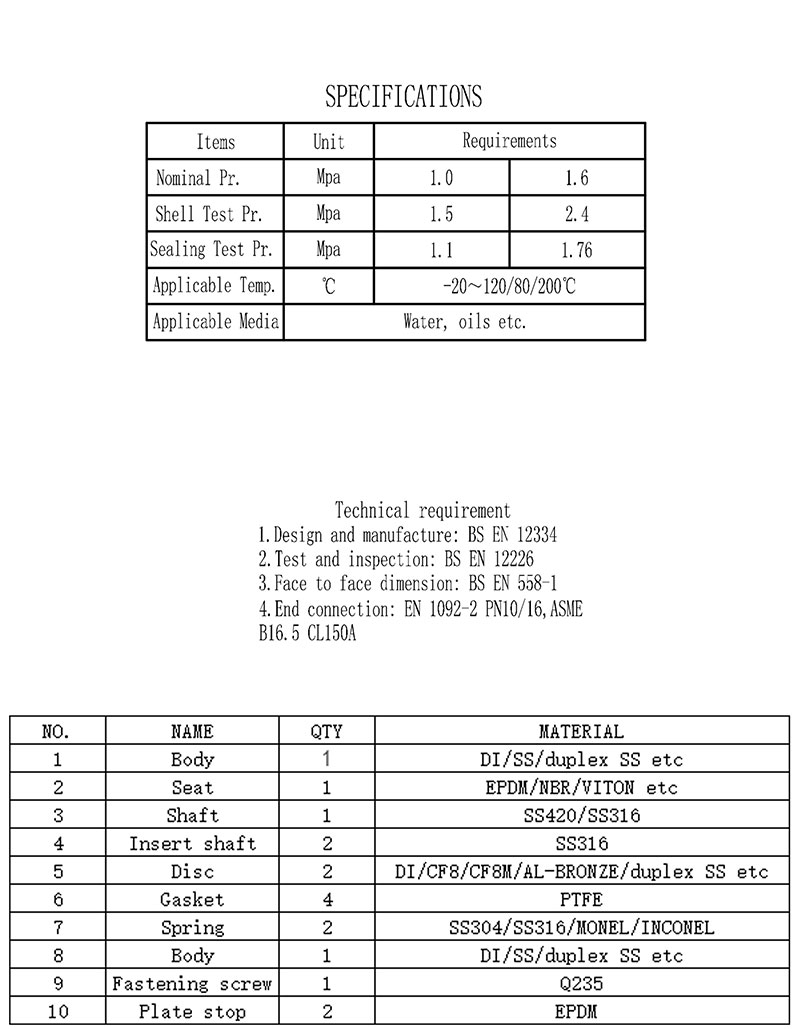

Design standard:
